For limestone mining company, calcium magnesium soil conditioner granulation solution offered a practical route for turning limestone from into a saleable agricultural input. This is a feedback we receive on August 10th, 2026 from Zimbabwe quarry owner, Kudzai Mugwira. He required a 10 TPH solution to process limestone + dolomite+ bentonite into quality calcium magnesium soil conditioner granules. balanced nutrients, 3-6mm adjustable and mechanical spread applicable. So, there is a YUSHUNXIN rotary drum granulation solution for you. This requires a cost and area of only USD 220,000 and 1500㎡. The following are the specific details of the negotiation in this case:
For setting up a 10TPH calcium magnesium soil amendment pelletizing line for Zimbabwe limestone quarry, the rotary drum granulation line is the best choice. The system integrates limestone powder making, nutrient adjustment, granulation, further improvement into one complete project solution. Which can upgrade limestone resources into commercial calcium magnesium soil conditioner products. In general, this is equipped with the following equipment.
Raymond mill for mineral rock broken
dynamic batching machine with 3 hoppers
800×3m double-shaft mixer;
1.8×7m rotary drum granulator;
3000 model disc pelletizer;
2×20m rotary dryer and 1.8×18m cooler;
1.8×7m rotary screener and 600 chain crusher;
400 bags/hour packing scale;
Dust collection system.

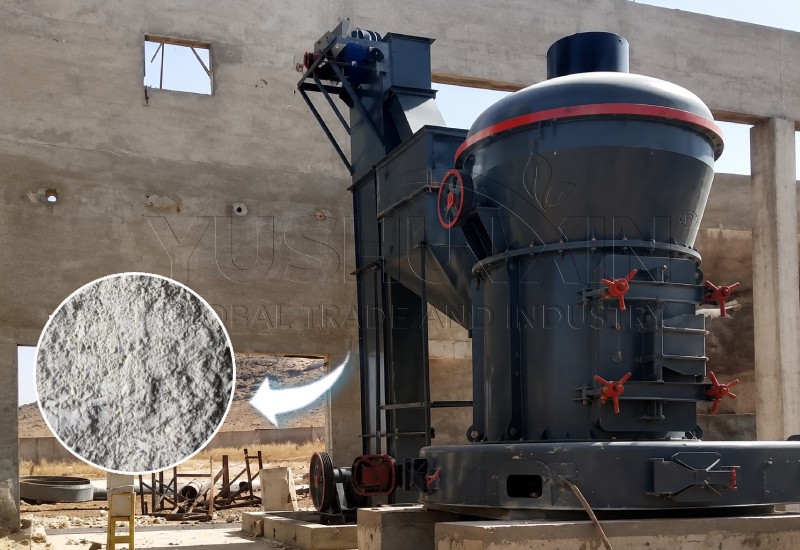

Raymond mill for limestone powder making
Get your own Calcium Magnesium Soil Conditioner Granulation Solution!
Can the system produce required granular limestone soil amendment?
For limestone quarry owners and mineral powder processors, the key challenge is not only converting lime powder into granules, but also with required quality for commercial soil amendment markets. Here, with the calcium magnesium soil conditioner granulation solution, you can get
Target granular soil conditioner production

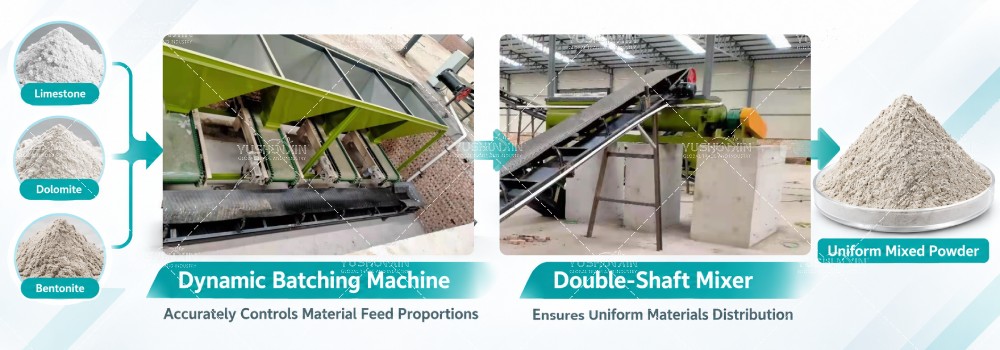

To produce quality calcium magnesium soil amendment with required elements of Ca and Mg, it is necessary to feed limestone, dolomite and bentonite precisely and mix them evenly. This better creates stable material conditions for the following granular soil conditioner production process.
Here, the dynamic batching machine accurately controls the raw material feed proportions because of sensitive weighing system. While the double-shaft mixer ensures uniform distribution before granulation. Due to the two opposing stirring shafts move simultaneously.
In addition, you can extend the soil amendment production business to mechanical farming investors by the rotary drum granulation solution.
Because, with wet granulation process and natural rotation pelletizing, you can process lime or limestone powder into round ball granules. Which has better mobility for mechanical spreading. Moreover, you can regulate particle size of the calcium magnesium soil conditioner freely between 3mm and 6mm.

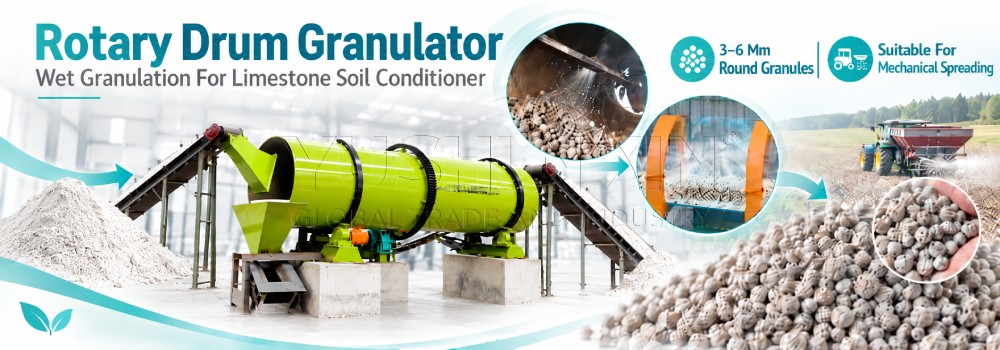

industrial soil conditioner granulator
90%-93% limestone powder to granules
In general, for the 10TPH calcium magnesium soil conditioner granulation, the conversioin rate is 90%. But with a disc pelletizing machine equipped after, you can improve it to 95%. Namely, with 10 tons of mixed limestone, dolomite and bentonite, you can get a granules output of 9.3 tons.
Further, to separate the uniform limestone soil amendment granules, it is advisable to use a rotary screen after granulators. How to dispose of the sieved pellets residues? This the reason why we equip the screener with a chain crusher. It will grind the returned granules into powder and send to granules formation again. Material loss reduction and resource utilization improvement.

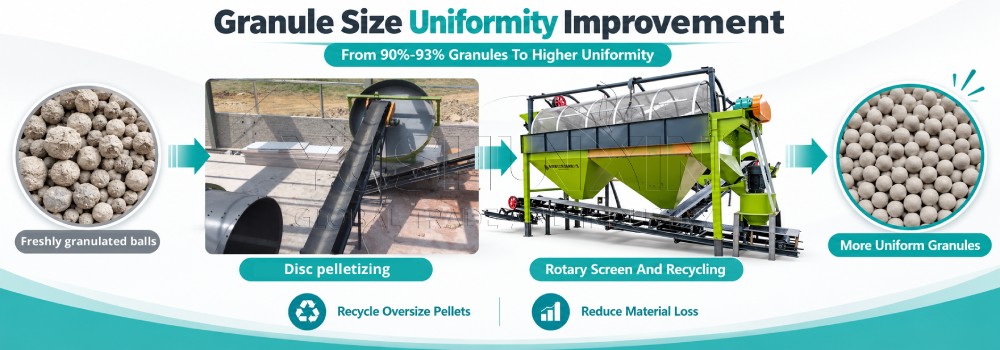

machines to improve limestone soil amendment granulation rate
Dust reduction better
Then, for calcium magnesium soil conditioner granules manufacturing, as a Zimbabwe investor, you may also focus on the dust reduction. For this, YUSHUNXIN will offer you considerate designs.
1. Dust collecting systems for drying, cooling and crushing
To effectively reduce the dust emission, we adopts dual collection processes. Not only cyclone dust removers but also water curtain collectors. Finally, to 13–18 mg/Nm³.
This dust reduction systems are equipped for both limestone powder grinding step and soil amendment pellets drying and cooling stages. Where requires dust collection the most.
2. closed sieving machine add
Moreover, for screener of limestone-based soil amendment granules, it is advisable to use a closed one.
3. dust covers on conveyors
According to your needs, we also can offer you belt conveyors with dust covers. This can help you control powder emissions in the whole process, from material feeding to packaging.

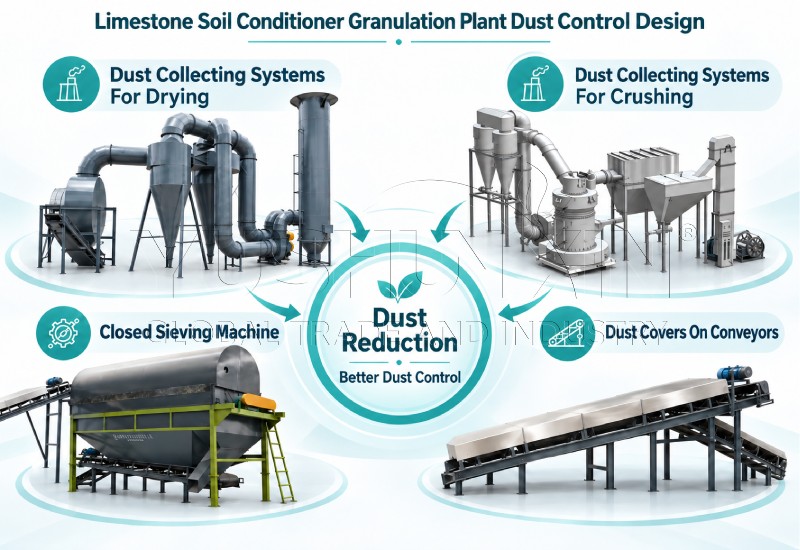

dust reduction system for large mineral powder granulation plant
What does the calcium magnesium soil amendment making system require?
To support the calcium magnesium soil amendment granules production line work well, it is advisable to prepare a budget of 220,000 USD, workshop of 4000㎡ area, 50-100 mesh fineness materials and clear the local energy conditions of power supply and fuel.
220,000 USD budget
For this Zimbabwe limstone-based soil conditioner granulation project, the equipment investment was approximately USD 220,000.
The equipment package covered not only the all sets equipment of mineral rock crushing, batching, mixing, granulation, drying, cooling, screen, packaging, dust collection, conveyors, but also auxiliary machines and accessories of PLC control, drying heat generation, support frames, support rollers, screen mesh, spare parts, etc.

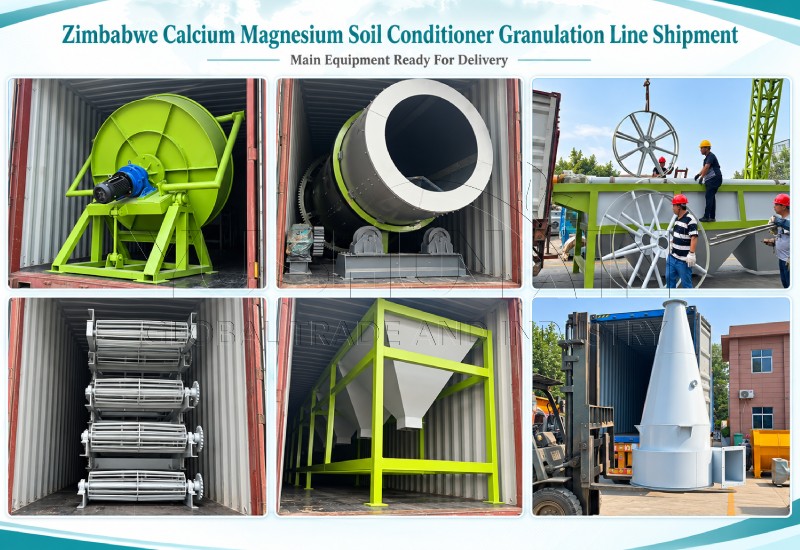

calcium magnesium soil conditioner granulation machines to Zimbabwe
4000㎡ workshop

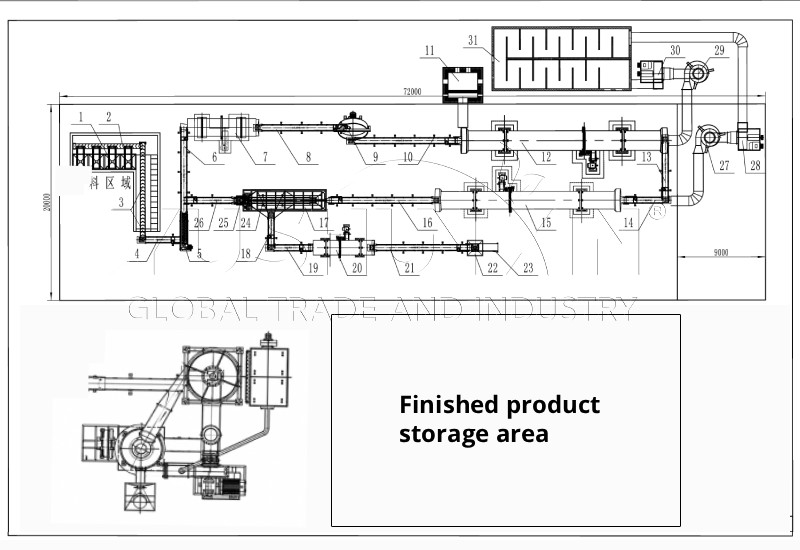

For a commercial limestone soil conditioner manufacturing project, workshop planning affects equipment arrangement, material transfer, and future operation. For this 10TPH project, the required workshop area was around 4,000㎡. The layout considered:
If you send us your workshop area for the calcium magnesium Soil conditioner granulation line first. we will offer your customized layout for you.
fine material powder preparation
Before entering the granulation process, limestone and dolomite materials need suitable preparation. Especially the mineral fines crushing.
Because only the limestone and dolomite powder in around 50-100 mesh fineness, you can produce soil amendment granules of 3-6mm better.

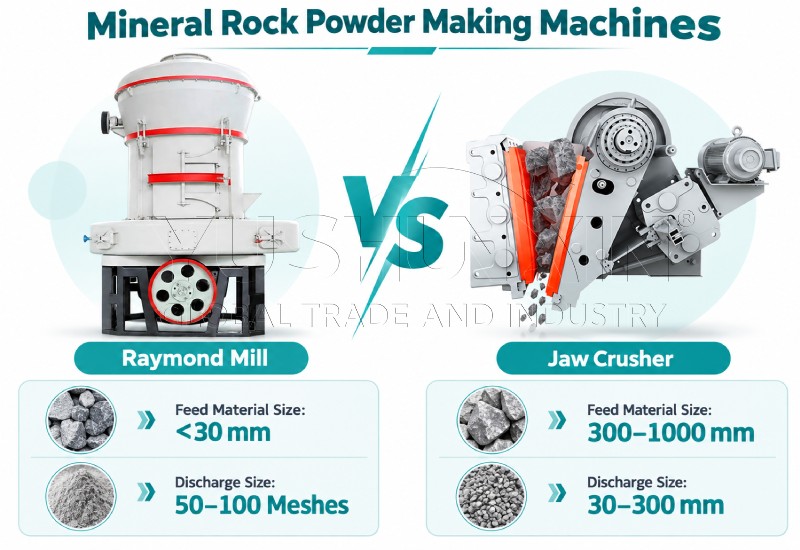

If your raw limestone arrives as large rocks of 300-1000mm, additional Jaw crusher equipment may be required. Adversely, for ＜30mm limestone processing, using a Raymand mill is enough.
Before equipment manufacturing for your calcium magnesium soil conditioner granulation plant, local energy conditions should be confirmed.
For Zimbabwe, it is advisable to maintain voltage of 380V/400V and frequency of 50Hz. If you requires others, please tell us first, YUSHUNXN will design it according to your requirements.
As for the drying section, natural gas is a standard heating option. However, fuel oil or biomass pellets can also be considered according to local availability.
Turnkey solution forcalcium magnesium soil conditioner granulation YUSHUNXIN offer you
For PANVERT INVESTMENT, YUSHUNXIN provided a complete project solution from layout design to equipment delivery. The service includes:

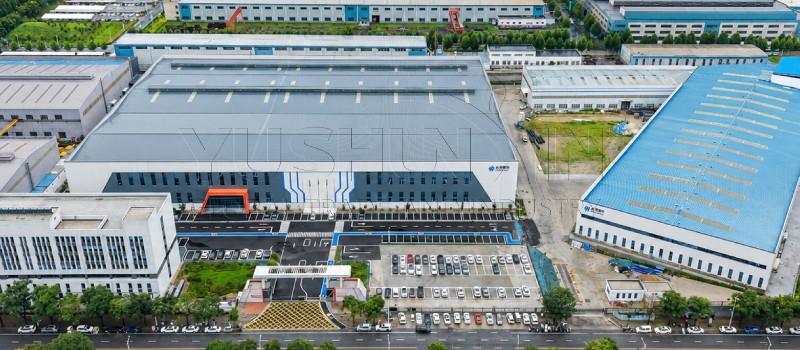

YUSHUNXIN fertilizer equipment manufacturing factory in China
YUSHUNXIN focuses on solutions for mineral rock process, animal manure management, and commercial fertilizer production. With 60,000+㎡ equipment manufacturing facility, welcomes to visit the factory and understand the manufacturing process before cooperation.
