Machine de granulation à tambour rotatif

Rotary drum granulator is a fertilizer machine that can make powder material to a rounded particles. This is one of the key equipment in fertilizer making. It has the characteristics of large capacity of 1-30 ÈME, 3-6 mm pellets making, automatic operation, ideal erosion resistance, etc.. This product is suitable for cold and hot granulation and the large-scale production of complex fertilizers in high and low concentration. More and more industrial fertilizer manufacturers prefer to use it to produce fertilizer granules.

rotary drum granulator for sale
rotary drum granulator for sale

Paramètres principaux

  • Capacité: 1-30 ème
  • Taille des granules: 3-6 mm
  • Taux de granulation: sur 90%
  • Humidité du matériau d'alimentation: 20-40%
  • Taille du matériau d'alimentation: 50 mailles
  • Matériel d'équipement: Acier au carbone Q235, rubber lining
  • Application: fumier animal, résidu de biogaz, humus, NPK, bentonite, mineral waste, etc.

What kind of fertilizer pellets can rotary drum granulator machine produce?

If you plan to start the industrial fertilizer pellet making for commercial purpose, the rotary drum granulator is an ideal choice. It can fully meet your various requirements for industrial granular fertilizer manufacturing. Tel que,

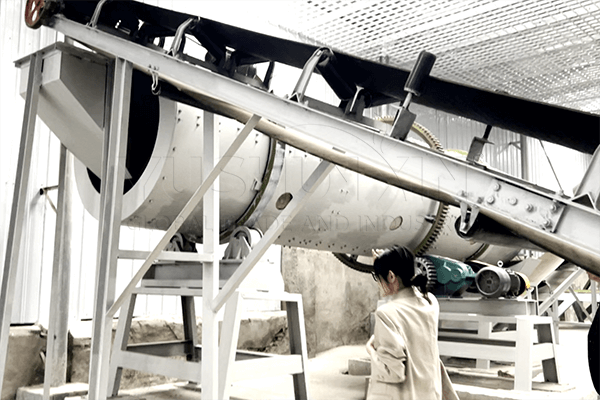

30 TPH drum granulator work in fertilizer plant
30 TPH drum granulator work in fertilizer plant
Fertilizer pellets from rotary drum granulator
Fertilizer pellets from rotary drum granulator

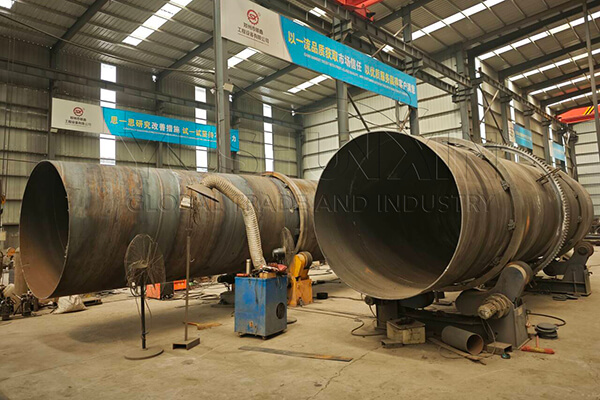

Rotary durm pelletizer manufacturing in YUSHUNXIN factory
Rotary durm pelletizer manufacturing in YUSHUNXIN factory

1-30 TPH granular fertilizer making

Whether you start a fertilizer granulation plant in a small or large scale, the drum pelletizer can fully meet your requirements. Parce que, the equipment is capable of producing fertilizer pellets at an output rate ranging from 1 à 30 tonnes par heure (TPH), avec 5 models.

3-6 mm size fertilizer granulation

En outre, for final size of fertilizer pellets making, the rotary granulation machine can offer you particles of 3-6 mm. This is ideal for both agricultural and industrial applications. How to regulate the particle size from the drum granulation? Only by adjustment of moisture and drum rotation speed.

Round ball fertilizer pelleting

Alors, the rotary drum granulator will prepare uniform, round fertilizer pellets for you. This has a that better performance in mechanical spreading in a large scale, and longer storage, slower release, etc.. Donc, your fertilizer making business is more competitive in commercial market.

Organic and compound fertilizer production

As for feeding materials, you can freely choose organic waste, agricultural waste and chemical powder. À savoir, the drum granulation equipment can granulate powder of cow dung, fumier de poulet, biogas making waste, paille, coque de riz, NPK, bentonite, mineral waste, etc.. Donc, it is an key equipment for both industrial organic fertilizers granulation et compound fertilizer pellets manufacturing.

Technology parameters of rotary drum granulator

ModèlePouvoir (kW)Diameter (mm)Length (mm)Angle d'installationVitesse de rotation (tr/min)Capacité (ème)
SXZGZ-12405.5120040002-5°171-3
SXZGZ-156011150060002-5°17.53-5
SXZGZ-187015180070002-5°11.55-8
SXZGZ-208018.5200080002-5°118-15
SXZGZ-3210373200100002-5°9.515-30

Learn more about fertilizer rotary drum granulator now!


How much does a rotary granulation equipment cost?

The cost of rotary granulation equipment varies widely depending on production capacity, material configuration, and automation level. En général, the price ranges from $8,000 à $90,000, making it accessible for both small and large fertilizer plants. You can choose the best one according to your budget.

Various fertilizer drum pelletizers manufacturing
Various fertilizer drum pelletizers manufacturing
If you want to buy a drum pelletizer with a $40,000-$90,000 quote, it is advisable to buy SXZGZ-2080 and SXZGZ-3210. They can help you produce fertilizer pellets in a large scale quickly, ranging from 8 TPH to 30 TPH. À savoir, the annual output of your fertilizer granulation plant can reach 180,000 tons.
When it comes to $15,000-$40,000 investment, here are 3-8 TPH rotary pellet machines for your choice. Including SXZGZ-1580, SXZGZ-1870.
En plus, for fertilizer pellet manufactures with budget limited, there is also SXZGZ-1240 for you. The equipment price is low than $15,000 and can fully meet your requirements of 1-3 TPH rotary drum granulation line setup.

How does a drum granulator work for fertilizer pellet production?

En général, the rotary drum granulation machine working process is closed related to the design and granulation method employment. This is a wet granulation fertilizer equipment, which mainly makes use of liquid cohesion to facilitate the granulation of powder. Aussi, the drum rotation plays an important role. Donc, this process contains the following 3 mesures:

  • D'abord, the belt conveyor send the powder materials to the drum.
  • Alors, through a certain amount of liquid, the power material will has excellent cohesion after being wet in the drum body.
  • Suivant, the main motor drives the shaft mesh with the large gear ring, which is key for drum rotation.
  • Under the action of drum rotation, the wet powder material will combine with each other and roll into required fertilizer pellets.

Learn more about the rotary drum granulator!


Is there automatic liquid spray device for rotary drum granulator machine?

Bien sûr. YUSHUNXIN can offer you customized rotary drum granulation machine with automatic liquid spray machine.

It crosses the rotary drum to atomize water, liquid binders, or even concentrated solutions directly. This controlled addition of liquid increases the surface adhesion of particles, which accelerates seed formation and growth into uniform fertilizer granules.

By adjusting spray pressure, droplet size, and position, you can control the material moisture in the drum pellet making process. Donc, you can control the granular fertilizer size you produce freely.

liquid spray for drum fertilizer granulation
liquid spray for drum fertilizer granulation

Can rotary drum pelletizer operation with fertilizer steam granulation?

granulation de vapeur d'engrais de la machine de granulation à tambour rotatif
granulation de vapeur d'engrais de la machine de granulation à tambour rotatif

En général, for a 1-10 TPH fertilizer pellet making, it is economical to adopts the cold granulation method. Which relies on the material moisture and drum rotation to granulte the powder fertilizer, comme mentionné ci-dessus. It is a simple process with low energy consumption.

Cependant, if you want to start a large scale production of fertilizer in 10-30 T/H faster, inject the steam into the rotating cylinder is an ideal choice. This hot granulation of fertilizer raises the temperature and moisture of materials. Donc, the powdered fertilizer is softer and easier to agglomerate, which make materials form into rounder and stronger fertilizer granules.

En outre, there are both professional steam inject boiler for drum granulation of fertilizer. Like the liquid spray system, it can help you control the adding of hot granulation steam precisely.


Haut 2 rotary drum granulator designs to reduce erosion in fertilizer pellet making

When producing commercial fertilizer pellets in a large scale, equipment durability is one of the biggest concerns. How about the rotary drum granulator machine? Ici, YUSHUNXIN developed the drum pelletizer with innovative designs to reduce erosion. Tel que,

Dual layer drum body design

The first is the dual layer design of the drum body. Typiquement, the outer shell of the rotary granulation machine is made from Q235 carbon steel, which provides high mechanical strength and durability. Inside, a rubber lining acts as a buffer against chemical erosion and mechanical impact from continuous material movement. As a result, you will benefit from longer equipment lifespan and fewer maintenance interruptions.

Revêtement en caoutchouc dans un granulateur d'engrais à tambour rotatif
Revêtement en caoutchouc dans un granulateur d'engrais à tambour rotatif
sticking knocker holes of rotary drum granulator machine
sticking knocker holes of rotary drum granulator machine

Granulation sticking knocker holes

The second design feature is the use of granulation sticking knocker holes. Because of powder granule making with liquid, some sticky materials may adhere to the drum wall. This will leads to uneven granules and accelerates surface damage. Donc, we especially design the rotary pellet machine with knocker holes. This mechanical devices can help you dislodge the buildup, keeping the inner surface clean and reducing wear.


What is the layout of organic and compound fertilizer production plants with rotary pelleting machine?

Pour ça, you can choose to using the rotary drum granulator machine only, or combine with other equipment to setup a drum granulation line. With batching machine, compost equipment, mixer, broyeur, séchoir, cooler and other auxiliary equipment, you can produce quality compound and organic fertilizer for self use or commercial sale. There are customized drum fertilizer pellet plant layout for you.

100,000 tons/year compound fertilizer production line with rotary drum granulator machine

When you plan to setup a 100,000 tons/year compound fertilizer production plant, a SXZGZ-3210 drum pelleting equipment is the best choice. It can granulate complex powder of 15-30 tonnes par heure. Combing with dynamic batching machine, 22m dryer, 20m cooler, 1800*1700 granule screener, 800 chain crusher, 1800*1700 coaterdouble bucket packing equipment and other accessories. De cette façon, you can make complex fertilizer from powder mixture of urea, chlorure d'ammonium, sulfate d'ammonium, monoammonium phosphate (CARTE), phosphate diammonique (DAP), chlorure de potassium (SERPILLIÈRE), sulfate de potassium (AMADOUER), etc..

20 TPH NPK compound fertilizer granulation plant layout
20 TPH NPK compound fertilizer granulation plant layout
5TPH organic fertilizer granulation line with drum pelletizer
5TPH organic fertilizer granulation line with drum pelletizer

30,000 tons/years organic fertilizer production line with drum granulating equipment

When it comes to 30,000 tons annual organic fertilizer granule making, the SXZGZ-1870 is advisable equipment. En plus, you need to configuration it with 8030 mixer, 1818 séchoir rotatif, 1616 glacière, 1560 sieving equipment, 1240 machine de revêtement, 600 chain crusher, and single bucket bagging scale. En plus, because organic fertilizer granule making from composted industrial residue, déchets agricoles, fumier animal, etc., which has high moisture and sticking together, you need to treat organic waste by compost machine, crusher and powder screening before granule manufacturing.

Except the two production lines, we also provide other lines with different capacity, tel que 20,000 t/y or 50,000 t/y, complete sets of equipment for organic or compound fertilizer production can procure from us. If you need rotary drum granulators or other fertilizer machines, you can contact us for details.


In addtion, there are many other lignes de production d'engrais and machines for your choice. Tel que granulateur à disque with economical price, nouveau type de granulateur d'engrais organique for hard fertilizer pelleting, presse à double rouleau for dry powder granulation, etc.. Welcome to contact us for details.
